Radio Broadcasting

This lesson aligns with NGSS PS4.C

Introduction

Transmission through radio and TV broadcasting involves the use of electromagnetic waves to carry audio and visual content from broadcasting stations to the public. Understanding how this transmission occurs offers insight into the technology and science behind the systems we rely on daily for communication and entertainment. In this article, we will explore how radio and television broadcasting systems work, focusing on the principles of transmission and the processes involved.

Radio Broadcasting

Radio broadcasting is the transmission of audio content over the airwaves to be received by the public. This type of broadcasting uses electromagnetic waves, specifically radio waves, to transmit sound information, such as speech and music, from a broadcasting station to radio receivers.

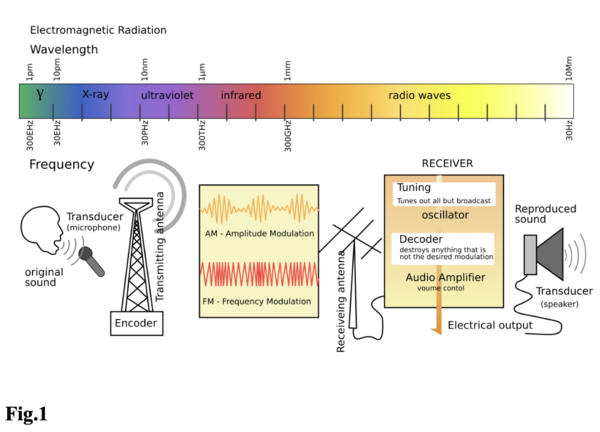

1. Sound Generation and Modulation Radio broadcasting starts with the generation of audio content, whether it is a live talk show, recorded music, or a news bulletin. This audio is first converted into an electrical signal using microphones or other audio equipment. Once the audio signal is created, it must be combined with a carrier wave to be transmitted over long distances. This process is called modulation. There are two primary methods of modulation used in radio broadcasting:

Amplitude Modulation (AM): In AM broadcasting, the amplitude (or strength) of the carrier wave is varied according to the amplitude of the audio signal.
Frequency Modulation (FM): In FM broadcasting, the frequency of the carrier wave is altered based on the audio signal. FM provides higher sound quality and less interference than AM, making it ideal for music broadcasting.

2. Transmission of the Modulated Signal

Once the audio signal has been modulated, it is transmitted into the air as an electromagnetic wave. The transmitter is responsible for amplifying the modulated signal and sending it through an antenna, which converts the electrical signal into radio waves. These waves travel through the atmosphere at the speed of light and can be received by any radio within range.

AM radio waves can travel long distances, especially at night when they can bounce off the ionosphere, while FM waves are typically limited to line-of-sight transmission, meaning they travel only a few hundred miles at most.

3. Reception of the Radio Signal

Radio receivers, such as car radios, portable radios, or home stereos, are equipped with antennas to capture radio waves traveling through the air. The radio receiver then demodulates the signal, separating the carrier wave from the audio content, and amplifies the audio so that it can be heard through the speakers.

Radio stations broadcast on specific frequencies, and the radio receiver allows the listener to tune in to their preferred station by selecting the corresponding frequency.

TV Broadcasting

Television broadcasting is a more complex process than radio, as it involves transmitting both visual (video) and auditory (audio) signals to deliver complete multimedia content. Television broadcasting relies on electromagnetic waves, much like radio, but incorporates additional steps to transmit images and sounds together.

1. Video and Audio Signal Generation

The first step in TV broadcasting is the generation of both audio and video signals. Video cameras capture moving images, which are then converted into electrical signals, while microphones record the accompanying audio. Both signals are processed and prepared for transmission. These signals need to be modulated, similar to radio, so that they can be transmitted through the air.

2.Modulation and Transmission of TV Signals

Just like in radio broadcasting, the audio and video signals must be modulated before transmission. There are two key methods used for this:

Amplitude Modulation (AM) for Video
Frequency Modulation (FM) for Audio

3. Reception of TV Signals

Television receivers, such as household TVs, are equipped with antennas or other reception devices like satellite dishes or cable connections to capture the broadcast signals. The receiver decodes the signal, demodulates it, and displays the video and audio on the screen.

In digital TV, the process involves converting the digital data back into audio and video formats that can be played on the TV. High-definition (HD) and 4K TVs further enhance the resolution and quality of the video display, providing an immersive viewing experience.

The Transition from Analog to Digital Broadcasting

One of the most significant advancements in broadcasting in recent decades has been the shift from analog to digital transmission. Digital broadcasting offers several benefits over analog, including better signal quality, more efficient use of the spectrum, and the ability to transmit additional data.

Conclusion

Radio broadcasting starts with the generation of audio content, whether it is a live talk show, recorded music, or a news bulletin.
This audio is first converted into an electrical signal using microphones or other audio equipment.
Once the audio signal is created, it must be combined with a carrier wave to be transmitted over long distances. This process is called modulation.
