Medical Imaging

This lesson aligns with NGSS PS4.C

Introduction

Medical imaging refers to the techniques and processes used to create images of the human body (or parts thereof) for clinical purposes, such as diagnosing diseases or assessing treatment outcomes. These images provide valuable insights into the structure and function of organs, tissues, and bones, allowing healthcare professionals to make informed decisions regarding patient care. From the early days of X-rays to the more advanced techniques such as magnetic resonance imaging (MRI) and ultrasound, medical imaging has revolutionized the field of medicine. This article provides an in-depth look at the different types of medical imaging, their uses, and their importance in healthcare.

Medical Imaging

Medical imaging can be categorized into different modalities, each offering unique advantages and being suitable for specific diagnostic purposes. The most common imaging techniques include X-ray, computed tomography (CT), magnetic resonance imaging (MRI), ultrasound, and positron emission tomography (PET). Let’s explore these modalities in more detail.

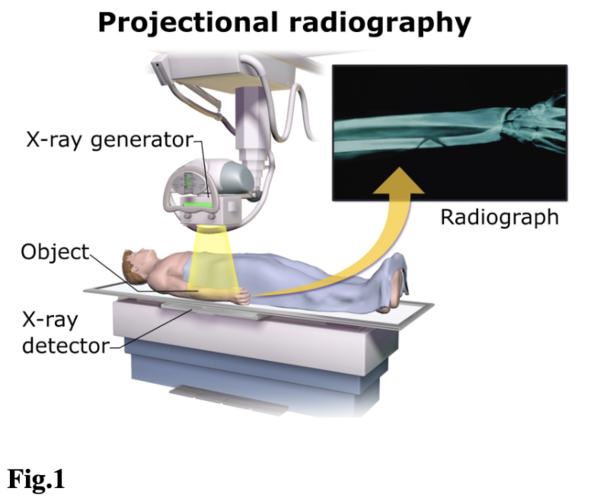

1. X-rays

X-rays are the oldest and most widely used form of medical imaging. Discovered in 1895 by Wilhelm Roentgen, X-rays use a form of electromagnetic radiation to create images of the body’s internal structures, particularly bones. The basic principle behind X-ray imaging is that different tissues absorb X-rays to varying degrees. Bones, for instance, absorb more X-rays than soft tissues, which is why they appear white on X-ray images, while muscles and organs appear darker.

X-rays are commonly used to diagnose bone fractures, dislocations, infections, and lung diseases like pneumonia or tuberculosis. They are also utilized in dental imaging and mammography. While X-rays provide valuable information, they do expose patients to small amounts of ionizing radiation, which is a consideration for frequent or repeated use.

2. Computed Tomography (CT)

Computed tomography (CT) scans are an advanced form of X-ray imaging that produces cross-sectional images of the body. CT scanners use rotating X-ray beams and detectors to create detailed 3D images of internal organs, blood vessels, and tissues. This modality allows for much more detailed visualization than traditional X-rays.

CT scans are widely used in diagnosing conditions such as cancer, cardiovascular disease, internal injuries, and infections. They are also helpful in planning surgeries and guiding biopsies. Like X-rays, CT scans expose patients to ionizing radiation, but the benefits of their detailed images often outweigh the risks, especially in critical cases.

3. Magnetic Resonance Imaging (MRI)

Magnetic resonance imaging (MRI) is a non-invasive imaging technique that uses powerful magnets and radio waves to create detailed images of the body's soft tissues, organs, and bones. Unlike X-rays and CT scans, MRI does not use ionizing radiation, making it a safer option for repeated scans or for patients who cannot tolerate radiation.

MRI is particularly useful for imaging the brain, spinal cord, muscles, and joints. It can detect abnormalities such as tumors, strokes, multiple sclerosis, and ligament or cartilage damage. MRI is also used to monitor the progress of chronic diseases and to assess treatment effectiveness. One of the advantages of MRI is its ability to differentiate between various soft tissues, making it an essential tool for diagnosing complex medical conditions.

4. Ultrasound

Ultrasound imaging, also known as sonography, uses high-frequency sound waves to create real-time images of internal organs and tissues. Ultrasound is a non-invasive and radiation-free technique, which makes it particularly safe for use during pregnancy to monitor fetal development. It is also commonly used to assess the health of organs such as the liver, kidneys, heart, and blood vessels.

In addition to its diagnostic applications, ultrasound can guide certain procedures, such as needle biopsies or fluid drainage. One of the key advantages of ultrasound is its ability to provide dynamic images, which is especially useful for evaluating blood flow, heart function, and the movement of joints or muscles.

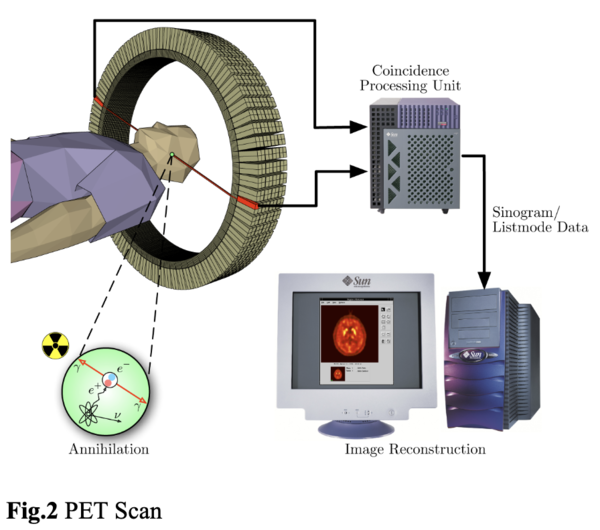

5. Positron Emission Tomography (PET)

Positron emission tomography (PET) is a specialized imaging technique that provides insights into the metabolic and biochemical activity of tissues. PET scans involve the injection of a small amount of radioactive tracer into the body. This tracer emits positrons, which are detected by the PET scanner to produce images of how tissues and organs are functioning.

PET scans are particularly valuable in oncology (cancer diagnosis and monitoring), cardiology, and neurology. They help detect cancerous tumors, assess the spread of cancer, evaluate brain disorders such as Alzheimer’s disease, and monitor the health of the heart after a heart attack. PET is often combined with CT or MRI to provide both structural and functional information in a single scan.

Conclusion

X-rays use a form of electromagnetic radiation to create images of the body’s internal structures, particularly bones.
Computed tomography (CT) scans are an advanced form of X-ray imaging that produces cross-sectional images of the body.
Magnetic resonance imaging (MRI) is a non-invasive imaging technique that uses powerful magnets and radio waves to create detailed images of the body's soft tissues, organs, and bones.
Ultrasound imaging, also known as sonography, uses high-frequency sound waves to create real-time images of internal organs and tissues.
